Day22. mult control, multiplexer 8x8

프로그램 : Quaturs Prime lite edition 18.1

사용문법 : Verilog 2001

보드 : DE1-SOC



module mult_control (
	input				clk			,
	input				reset_a		,
	input				start		,
	input		[1:0]	count		,
	output reg	[1:0]	input_sel	,
	output reg	[1:0]	shift_sel	,
	output reg	[2:0]	state_out	,
	output reg			done		,
	output reg			clk_ena		,
	output reg			sclr_n
	);

	parameter idle=0, lsb=1, mid=2, msb=3, calc_done=4, err=5;

	reg [2:0] current_state;
	reg [2:0] next_state;

	// state register
	always @(posedge clk, posedge reset_a) begin
		if (reset_a) current_state <= idle;
		else current_state <= next_state;
	end

	// next state combinational logic
	always @(*) begin
		case (current_state)
			idle: begin
				if (start) next_state = lsb;
				else next_state = idle;
			end
			lsb: begin
				if ((!start)&(count==2'b00)) next_state = mid;
				else next_state = err;
			end
			mid: begin
				if ((!start)&(count==2'b01)) next_state = mid;
				else if ((!start)&(count==2'b10)) next_state = msb;
				else next_state = err;
			end
			msb: begin
				if ((!start)&(count==2'b11)) next_state = calc_done;
				else next_state = err;
			end
			calc_done: begin
				if (!start) next_state = idle;
				else next_state = err;
			end
			err: begin
				if (start) next_state = idle;
				else next_state = err;
			end
		endcase
	end

	// (Mealy's FSM) output combinational logic
	always @(*) begin
		input_sel = 2'bxx;
		shift_sel = 2'bxx;
		done = 1'b0;
		clk_ena = 1'b0;
		sclr_n = 1'b1;
		case (current_state)
			idle: begin
				if (start) begin
					clk_ena = 1'b1;
					sclr_n = 1'b0;
				end
			end
			lsb: begin
				if ((!start)&(count==2'b00)) begin
					input_sel = 2'b00;
					shift_sel = 2'b00;
					clk_ena = 1'b1;
				end
			end
			mid: begin
				if ((!start)&(count==2'b01)) begin
					input_sel = 2'b01;
					shift_sel = 2'b01;
					clk_ena = 1'b1;
				end
				else if ((!start)&(count==2'b10)) begin
					input_sel = 2'b10;
					shift_sel = 2'b01;
					clk_ena = 1'b1;
				end
			end
			msb: begin
				if ((!start)&(count==2'b11)) begin
					input_sel = 2'b11;
					shift_sel = 2'b10;
					clk_ena = 1'b01;
				end
			end
			calc_done: begin
				if (!start) begin
					done = 1'b1;
				end
			end
			err: begin
				if (start) begin
					clk_ena = 1'b1;
					sclr_n = 1'b0;
				end
			end
		endcase
	end

	// (Moore's FSM) output combinational logic
	always @(current_state) begin
		state_out = 3'b000;
		case (current_state)
			idle: ;
			lsb: state_out = 3'b001;
			mid: state_out = 3'b010;
			msb: state_out = 3'b011;
			calc_done: state_out = 3'b100;
			err: state_out = 3'b101;
		endcase
	end

endmodule

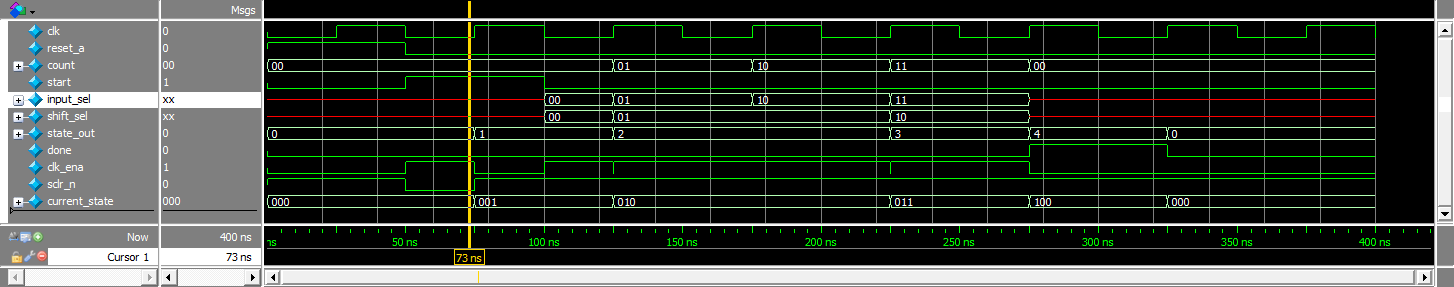

`timescale 1 ns/1 ns

module mult_control_tb();

	// Wires to connect to DUT
	reg clk, reset_a, start;
	reg [1:0] count;
	wire [2:0] state_out;
	wire [1:0] input_sel, shift_sel;
	wire done, clk_ena, sclr_n;
	integer i;

	// Instantiate unit under test (mult_control)
	mult_control mult_control1 (.clk(clk), .reset_a(reset_a), .count(count),
		.input_sel(input_sel), .shift_sel(shift_sel), .state_out(state_out),
		.done(done), .clk_ena(clk_ena), .sclr_n(sclr_n), .start(start));

	// Process to create clock signal
	initial begin
		clk = 0;
		forever clk = #25 ~clk;
	end

	// Set the reset control
	initial begin
		reset_a = 1'b1;
		#50 reset_a = 1'b0;
	end

	// Process to control counter
	initial begin
		count = 2'd0;
		#125 ;
		for (i=0; i<4; i=i+1) begin
			count = count + 1;
			#50 ;
		end
	end

	// Start signal control
	initial begin
		start = 1'b0;
		#50 start = 1'b1;
		#50 start = 1'b0;
	end

endmodule

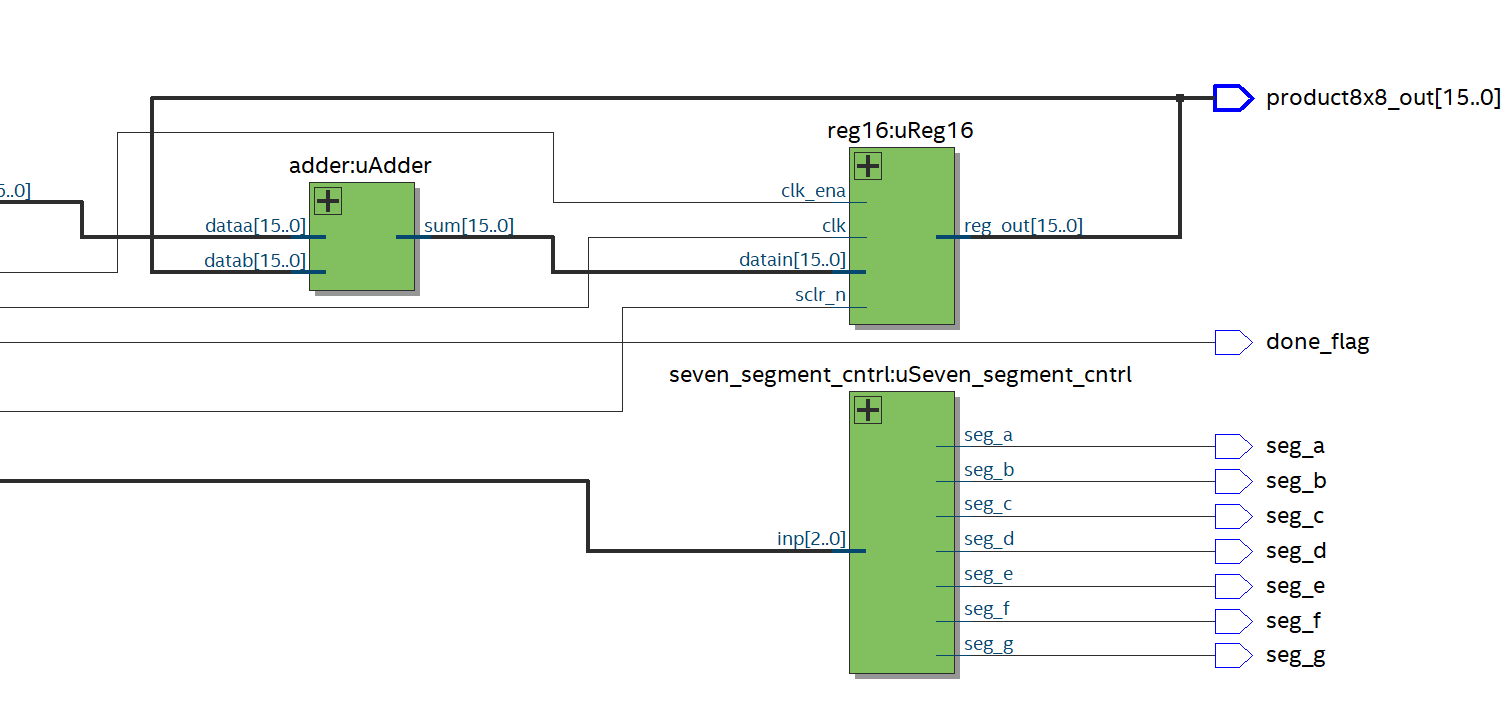

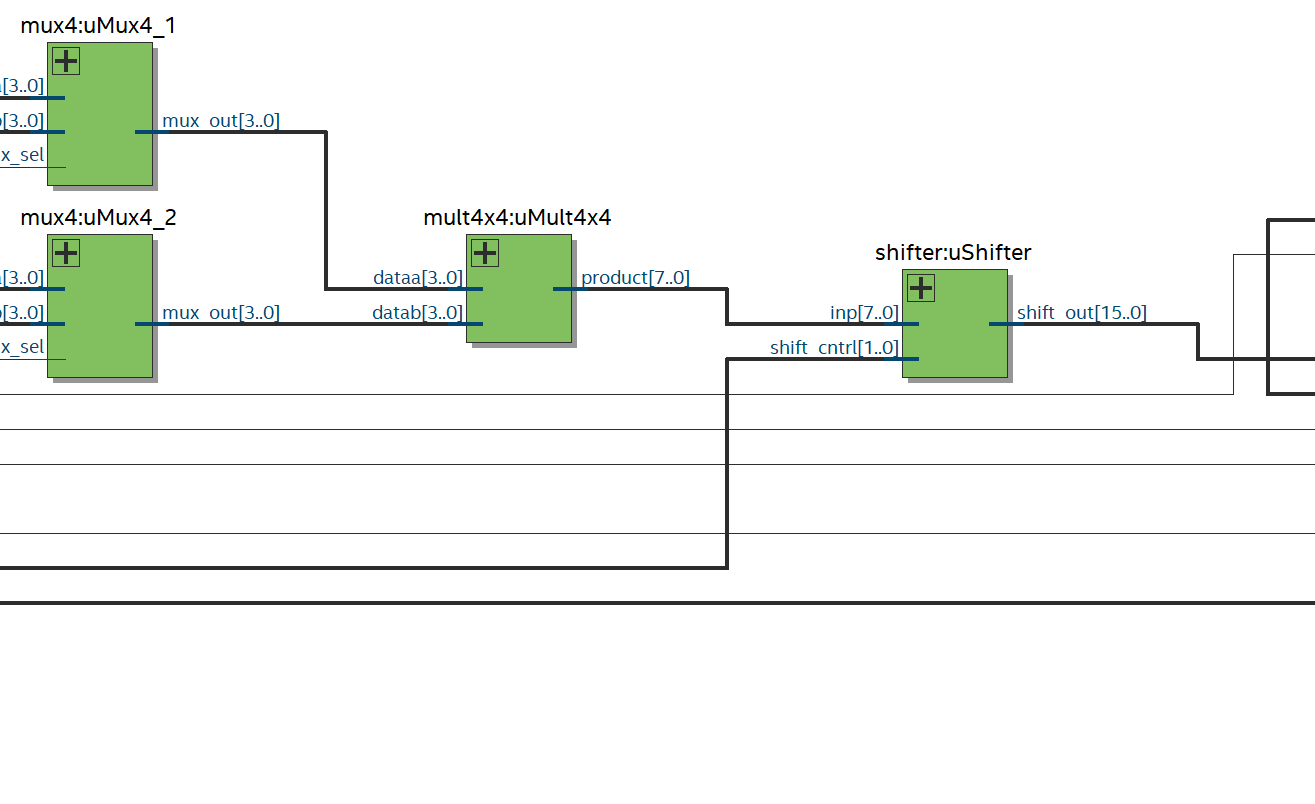

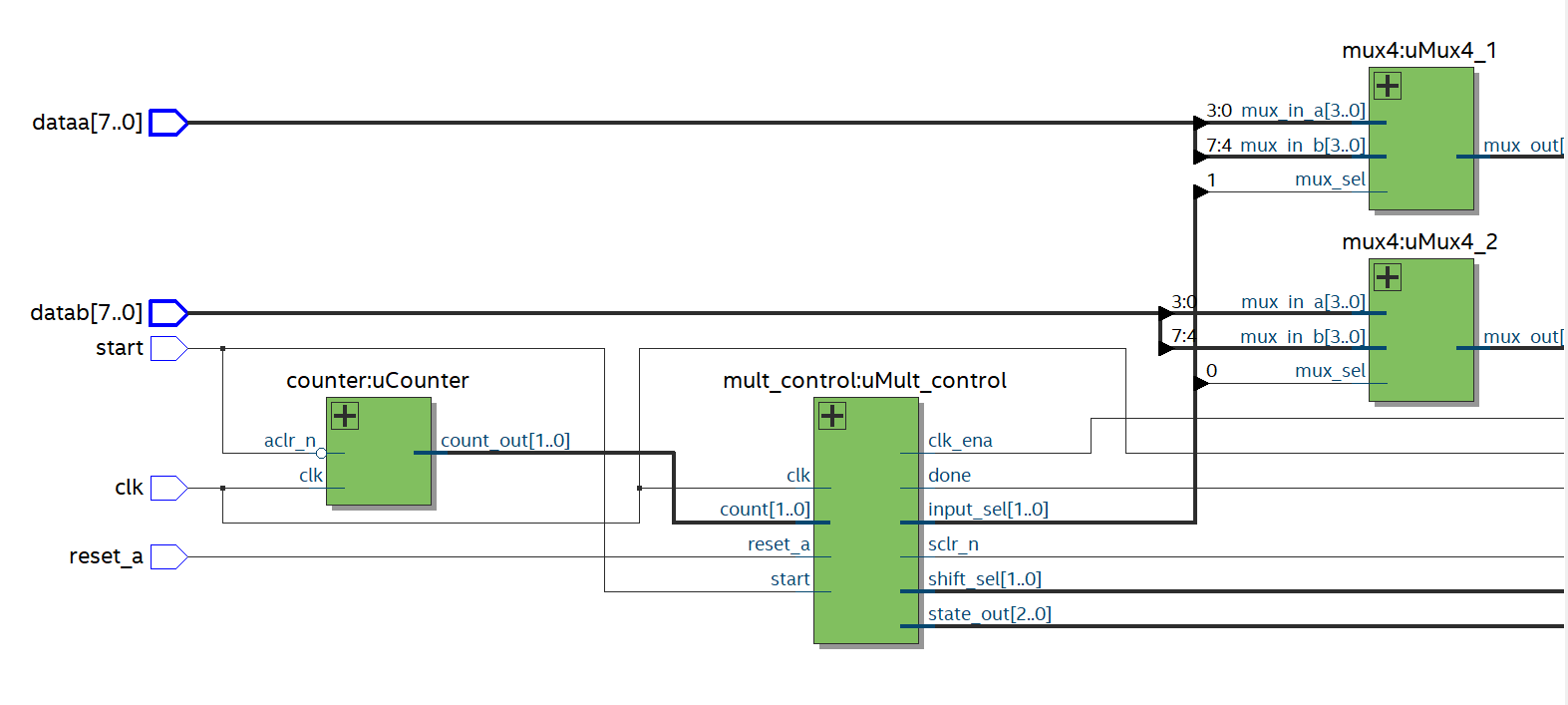

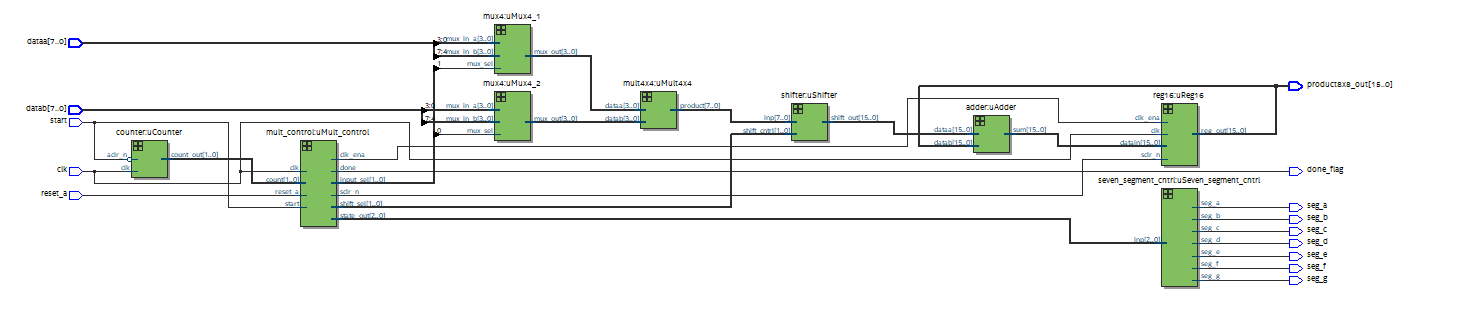

mult 8x8

`include "../lab1a/adder.v"
`include "../lab1b/mult4x4.v"
`include "../lab2a/mux4.v"
`include "../lab2b/shifter.v"
`include "../lab3/seven_segment_cntrl.v"
`include "../lab4a/reg16.v"
`include "../lab4b/counter.v"
`include "../lab5a/mult_control.v"

module mult8x8 (
  input   [7:0]    dataa          ,
  input   [7:0]    datab          ,
  input            start          ,
  input            reset_a        ,
  input            clk            ,
  output           done_flag      ,
  output  [15:0]   product8x8_out ,
  output           seg_a          ,
  output           seg_b          ,
  output           seg_c          ,
  output           seg_d          ,
  output           seg_e          ,
  output           seg_f          ,
  output           seg_g
);

  wire [1:0] w_count_out    ;
  wire [1:0] w_sel          ;
  wire [1:0] w_shift        ;
  wire [2:0] w_state_out    ;
  wire [3:0] w_aout         ;
  wire [3:0] w_bout         ;
  wire [7:0] w_product      ;
  wire [15:0] w_shift_out   ;
  wire [15:0] w_sum         ;

  counter uCounter(
    .clk       (clk         ),
    .aclr_n    (~start      ),
    .count_out (w_count_out )
  );

  mult_control uMult_control (
    .clk        (clk        ),
    .reset_a	  (reset_a    ),
    .start		  (start      ),
    .count		  (w_count_out),
    .input_sel  (w_sel      ),
    .shift_sel  (w_shift    ),
    .state_out  (w_state_out),
    .done			  (done_flag  ),
    .clk_ena	  (clk_ena    ),
    .sclr_n		  (sclr_n     )
  );

  mux4 uMux4_1(
    .mux_in_a(dataa[3:0]),
    .mux_in_b(dataa[7:4]),
    .mux_sel (w_sel[1]  ),
    .mux_out (w_aout    )
  );

  mux4 uMux4_2(
    .mux_in_a(datab[3:0]),
    .mux_in_b(datab[7:4]),
    .mux_sel (w_sel[0]  ),
    .mux_out (w_bout    )
  );

  mult4x4 uMult4x4(
    .dataa  (w_aout    ),
    .datab  (w_bout    ),
    .product(w_product )
  );

  shifter uShifter(
    .inp        (w_product  ),
    .shift_cntrl(w_shift    ),
    .shift_out  (w_shift_out)
  );

  reg16 uReg16(
    .clk    (clk            ),
    .sclr_n (sclr_n         ),
    .clk_ena(clk_ena        ),
    .datain (w_sum          ),
    .reg_out(product8x8_out )
  );

  adder uAdder(
    .dataa (w_shift_out   ),
    .datab (product8x8_out),
    .sum   (w_sum         )
  );

  seven_segment_cntrl uSeven_segment_cntrl(
    .inp  (w_state_out),
    .seg_a(seg_a      ),
    .seg_b(seg_b      ),
    .seg_c(seg_c      ),
    .seg_d(seg_d      ),
    .seg_e(seg_e      ),
    .seg_f(seg_f      ),
    .seg_g(seg_g      )
  );
endmodule
