Day.81 Advanced Verilog #4

Krakens 2023. 11. 14. 13:34
728x90
module my_shift_tx (
  input             clk     ,
  input             aclr_n  ,
  input             enable  ,
  input   [7:0]     shiftin , // parallel to serial
  output  reg       q
);

  reg     [7:0] txData;
  wire    [7:0] Shiftin_Serial = (enable) ? shiftin : {1'b0, txData[7:1]};

  // Parallel to serial shift register
  always @(posedge clk or negedge aclr_n) begin
    if (!aclr_n)
      txData <= 8'b0;
    else
      txData <= Shiftin_Serial;
  end

  // Serial out shift register with enable control
  always @(posedge clk or negedge aclr_n) begin
    if (!aclr_n)
      q <= 0;
    else if (enable)
      q <= q; // Shift q to the right
  end

endmodule

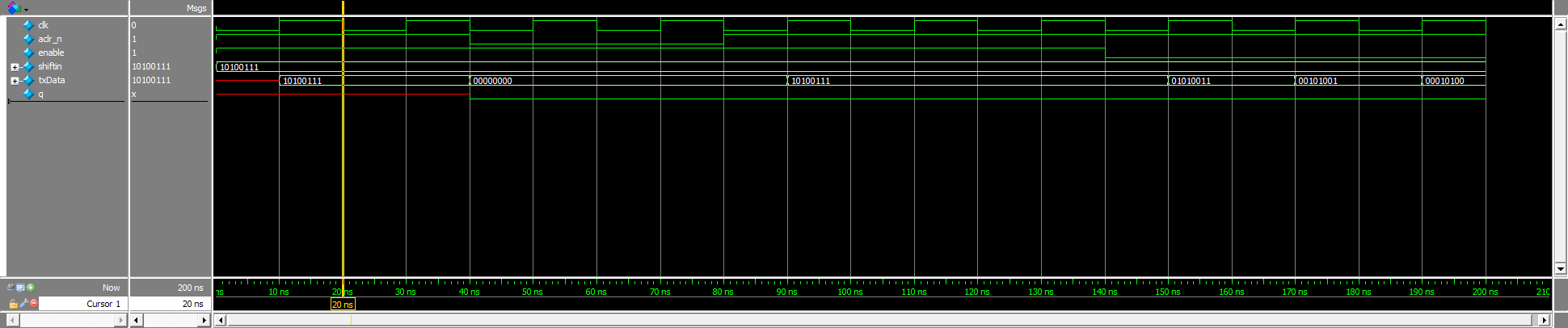

`timescale 1ns/1ns
`define CLK_50Mhz 20

module tb_my_shift_tx ();

  reg         clk     ;
  reg         aclr_n  ;
  reg         enable  ;
  reg   [7:0] shiftin ;
  wire        q       ;

my_shift_tx uMy_shift_tx(
  .clk    (clk    ) ,
  .aclr_n (aclr_n ) ,
  .enable (enable ) ,
  .shiftin(shiftin) ,
  .q      (q      )
);

initial fork
  clk_gen();
  reset_gen();
  ctrl_gen();
  data_gen();
join

task clk_gen;
  begin
    clk = 0;
    forever #(`CLK_50Mhz/2) clk = ~clk;
  end
endtask

task reset_gen;
  begin
    aclr_n =1'b1;
    repeat(2) @(negedge clk);
     aclr_n =1'b0;
    repeat(2) @(negedge clk);
    aclr_n =1'b1;
  end
endtask

task ctrl_gen;
  begin
    enable = 1'b0;
    repeat (6) @(negedge clk);
    enable = 1'b1;
    @(negedge clk);
    enable = 1'b0;
  end
endtask

task data_gen;
  begin
    enable = 1'b1;
    shiftin=8'hA7;
  end
endtask


endmodule

module my_shift_tx (
  input             clk     ,
  input             aclr_n  ,
  input             enable  ,
  input   [7:0]     shiftin , // parallel to serial
  output  reg       q
);

  reg     [7:0] txData;
  wire    [7:0] Shiftin_Serial = (enable) ? shiftin : {1'b0, txData[7:1]};

  // Parallel to serial shift register
  always @(posedge clk or negedge aclr_n) begin
    if (!aclr_n)
      txData <= 8'b0;
    else
      txData <= Shiftin_Serial;
  end

  // Serial out shift register with enable control
  always @(posedge clk or negedge aclr_n) begin
    if (!aclr_n)
      q <= 0;
    //else if (enable)
      q <= txData[0]; // Shift q to the right
  end

endmodule

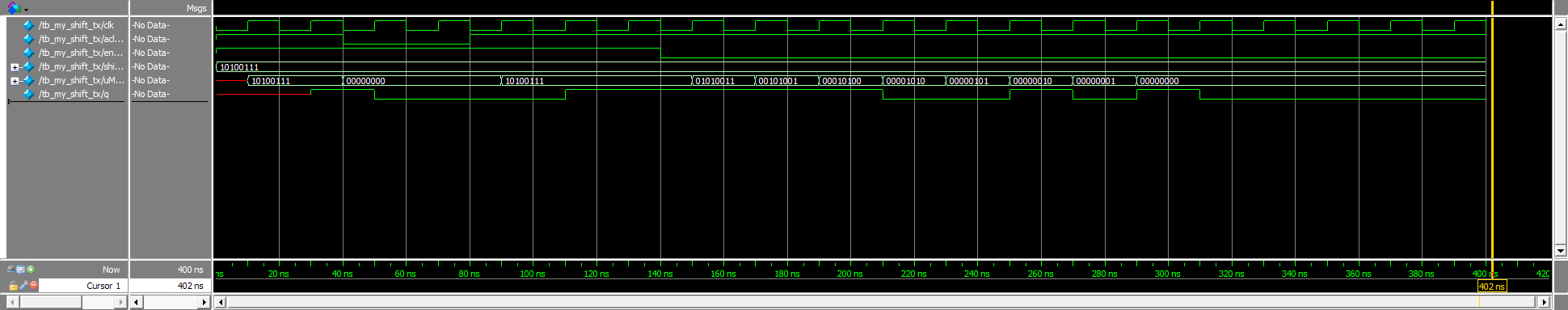

`timescale 1ns/1ns
`define CLK_50Mhz 20

module tb_my_shift_tx ();

  reg         clk     ;
  reg         aclr_n  ;
  reg         enable  ;
  reg   [7:0] shiftin ;
  wire        q       ;

my_shift_tx uMy_shift_tx(
  .clk    (clk    ) ,
  .aclr_n (aclr_n ) ,
  .enable (enable ) ,
  .shiftin(shiftin) ,
  .q      (q      )
);

initial fork
  clk_gen();
  reset_gen();
  ctrl_gen();
  data_gen();
join

task clk_gen;
  begin
    clk = 0;
    forever #(`CLK_50Mhz/2) clk = ~clk;
  end
endtask

task reset_gen;
  begin
    aclr_n =1'b1;
    repeat(2) @(negedge clk);
     aclr_n =1'b0;
    repeat(2) @(negedge clk);
    aclr_n =1'b1;
  end
endtask

task ctrl_gen;
  begin
    enable = 1'b0;
    repeat (6) @(negedge clk);
    enable = 1'b1;
    @(negedge clk);
    enable = 1'b0;
  end
endtask

task data_gen;
  begin
    enable = 1'b1;
    shiftin=8'hA7;
  end
endtask


endmodule



module my_shift_tx (
  input             clk     ,
  input             aclr_n  ,
  input             enable  ,
  input   [7:0]     shiftin , // parallel to serial
  output  reg       q
);

  reg     [7:0] txData;
  wire    [7:0] Shiftin_Serial = (enable) ? shiftin : {1'b0, txData[7:1]};

`ifdef DEBUG
 // Parallel to serial shift register
  always @(posedge clk or negedge aclr_n) begin
    if (!aclr_n)
      txData <= 8'b0;
    else
      txData <= Shiftin_Serial;
  end
`else
  always @(posedge clk, negedge aclr_n) begin
    if(!aclr_n)
      txData <= 0;
    else if
      txData <= Shiftin;
    else
      txData <= {1'b0,txData[7:1]};
  end
`endif

  // Serial out shift register with enable control
  always @(posedge clk or negedge aclr_n) begin
    if (!aclr_n)
      q <= 0;
    //else if (enable)
      q <= txData[0]; // Shift q to the right
  end

endmodule

module my_counter(
  input             clock   ,
  input             aclr_n  ,
  input             clk_ena ,
  output reg [7:0]  q = 0
);

always @ (posedge clock, negedge aclr_n)
  if (!aclr_n)
    q[7:0] <= 0;
  else if (clk_ena)
    q <= q+1;
endmodule

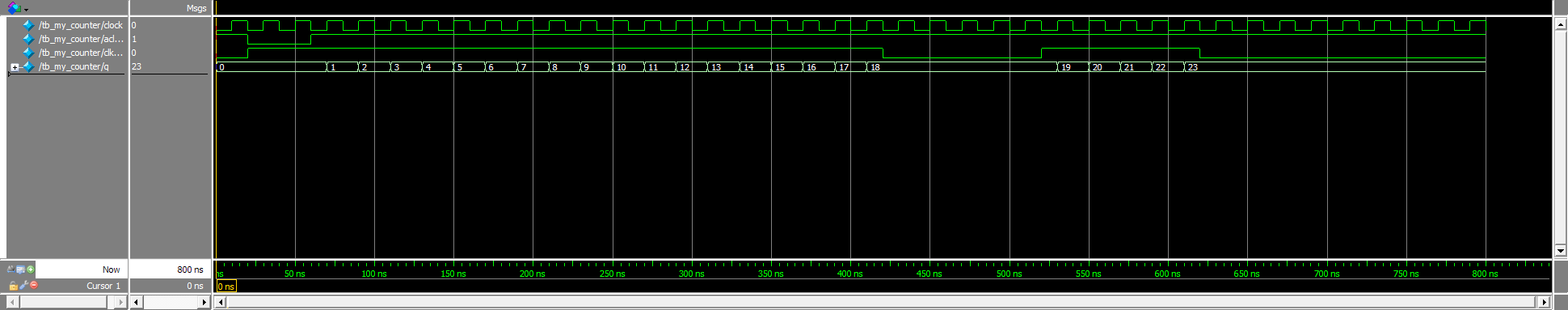

`timescale 1ns/1ns
`define SIZE 8
`define CLK_50Mhz 20

module tb_my_counter ();
  reg         clock   ;
  reg         aclr_n  ;
  reg         clk_ena ;
  wire [`SIZE-1:0]  q       ;

my_counter uMy_counter (
  .clock  (clock  ) ,
  .aclr_n (aclr_n ) ,
  .clk_ena(clk_ena) ,
  .q      (q      )
);

initial fork
  clock_gen ();
  reset_gen();
  data_gen();
  ctrl_gen();
join

  task clock_gen;
    begin
      clock = 1'b0;
      forever #(`CLK_50Mhz/2) clock=~clock;
    end
  endtask

  task reset_gen();
    begin
      aclr_n = 1'b1;
      repeat(2) @(negedge clock)
      aclr_n = 1'b0;
      repeat(2) @ (negedge clock)
      aclr_n = 1'b1;
    end
  endtask

  task data_gen;
    begin
    end
  endtask

  task ctrl_gen;
   begin
    clk_ena = 1'b0;
    repeat(20) @(negedge clock)
    clk_ena = 1'b1;
    repeat(5) @(negedge clock)
    clk_ena = 1'b0;
    repeat(5) @(negedge clock)
    clk_ena = 1'b1;
    repeat(5) @(negedge clock)
    clk_ena = 1'b0;

   end
  endtask
endmodule



module my_count(
  input               clk     ,
  input               aclr_n  ,
  input               updown  ,
  input               sload   ,
  input       [7:0]   data    ,
  output reg  [7:0]   q=0
);

always @(posedge clk, negedge aclr_n)
begin
  if (aclr_n == 0)
    q[7:0] <= 0;
  else if (sload == 1)
    q <= data;
  else begin
    q <= q + (updown ? 1: -1);
  end
end

endmodule

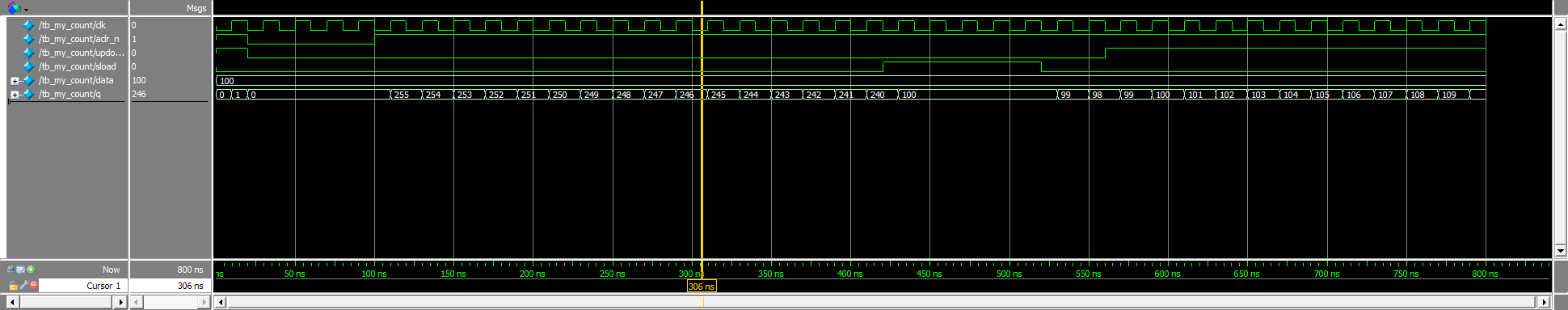

`define CLK_50Mhz 20

module tb_my_count();
  reg           clk     ;
  reg           aclr_n  ;
  reg           updown  ;
  reg           sload   ;
  reg   [7:0]   data    ;
  wire  [7:0]   q       ;

my_count uMy_count(
  .clk   (clk   )  ,
  .aclr_n(aclr_n)  ,
  .updown(updown)  ,
  .sload (sload )  ,
  .data  (data  )  ,
  .q     (q     )
);

  initial fork
    clk_gen();
    reset_gen();
    data_gen();
    ctrl_gen();
  join


  task clk_gen;
    begin
      clk = 1'b0;
      forever #(`CLK_50Mhz/2) clk=~clk;
    end
  endtask

  task reset_gen();
    begin
      aclr_n = 1'b1;
      repeat(4)@(negedge clk)
      aclr_n = 1'b0;
      repeat(2)@(negedge clk)
      aclr_n = 1'b1;
    end
  endtask

  task data_gen;
    begin
      data=100;
    end
  endtask

  task ctrl_gen;
   begin
   updown = 1'b1;
   sload = 1'b0;
   repeat(20) @(negedge clk)
   updown = 1'b0;
   repeat(5) @(negedge clk)
   sload = 1'b1;
   repeat(2) @(negedge clk)
   sload = 1'b0;
   repeat(15) @(negedge clk)
   updown = 1'b1;
   end
  endtask
endmodule





`define MOD_100


module count_moda
`ifdef MOD_100
#(parameter modulus = 100)
`endif
 (
	input 						clk		,
	input							aclr_n	,
	`ifdef MOD_100
	input							updown	,
	`endif
	output reg [7:0] 	q=0
);

`ifdef MOD_100
	integer direction;

	always @(*) begin
	if(updown)
	direction = 1;
	else
	direction = -1;
	end

`endif

always @(posedge clk, negedge aclr_n)
begin
	if (!aclr_n)
		q <= 0;
`ifdef MOD_100
	else begin
		/*if (updown)
			direction <= 1;
		else
			direction <= -1;*/

			if	((q ==modulus -1) && (direction ==1))
				q<=0;
			else if ((q==0) &&(direction == -1))
				q <= modulus - 1;
			else
				q <= q + direction;

		end
`else
	else
		q <= q + 1'b1;
`endif
	end

endmodule




`define MOD_100


module count_moda
`ifdef MOD_100
#(parameter modulus = 100)
`endif
 (
	input 						clk		,
	input							aclr_n	,
	`ifdef MOD_100
	input							updown	,
	`endif
	output reg [7:0] 	q=0
);

`ifdef MOD_100
	integer direction=0;

	/*always @(*) begin
	if(updown)
	direction = 1;
	else
	direction = -1;
	end*/

`endif

always @(posedge clk, negedge aclr_n)
begin
	if (!aclr_n)
		q <= 0;
`ifdef MOD_100
	else begin
		if (updown)
			direction <= 1;
		else
			direction <= -1;

			if	((q ==modulus -1) && (direction ==1))
				q<=0;
			else if ((q==0) &&(direction == -1))
				q <= modulus - 1;
			else
				q <= q + direction;

		end
`else
	else
		q <= q + 1'b1;
`endif
	end

endmodule

윗 코드의 LE가 더 적다.
